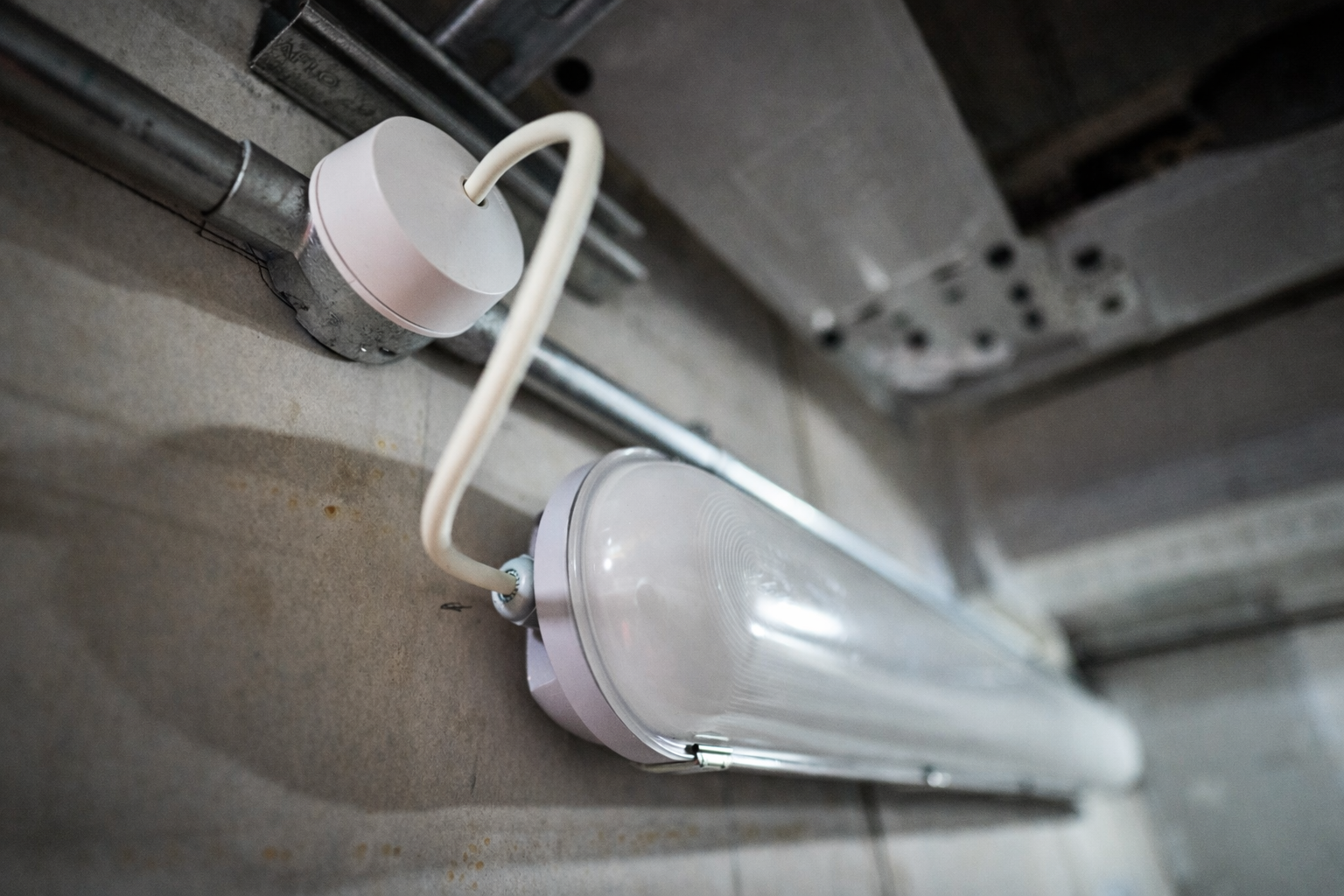

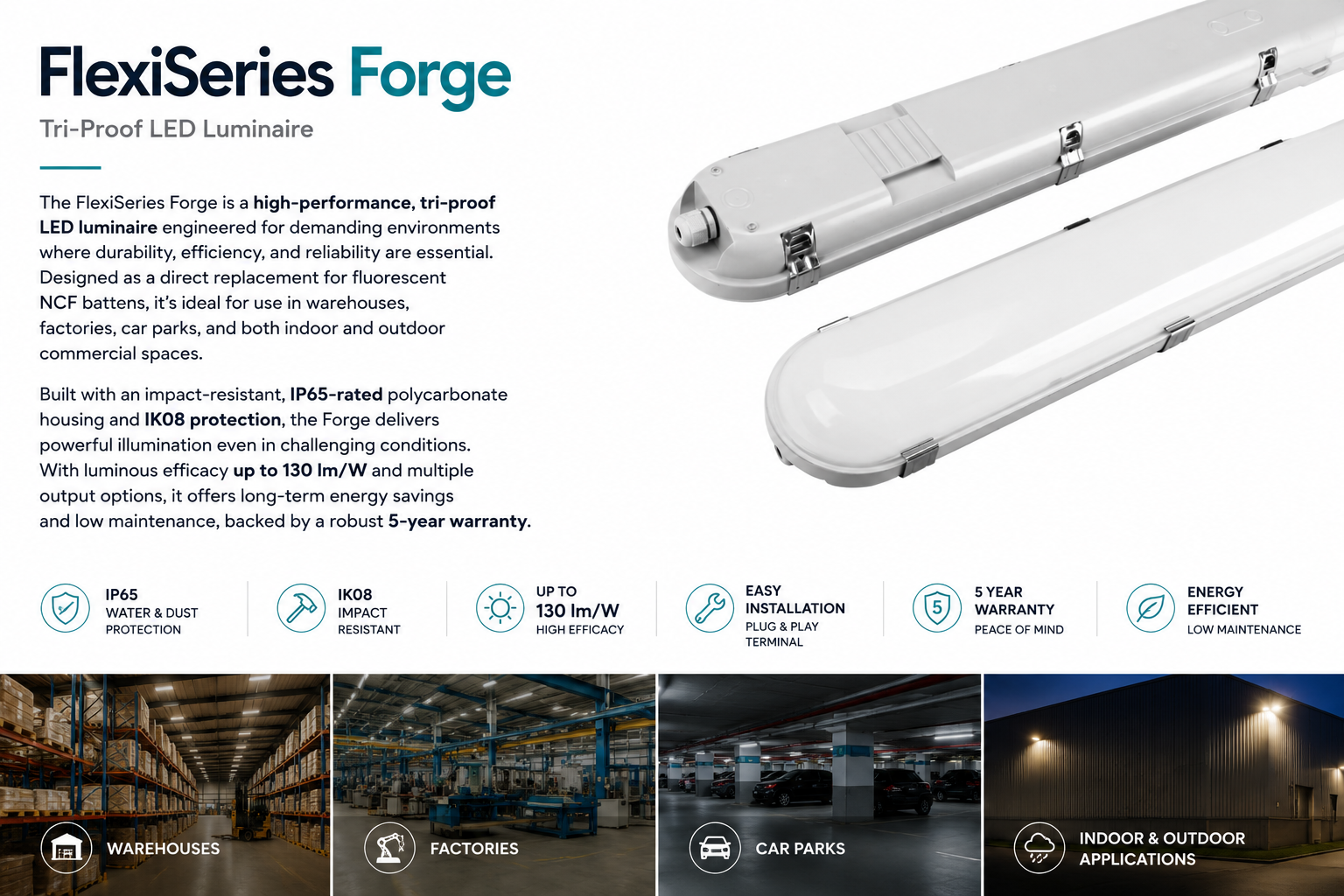

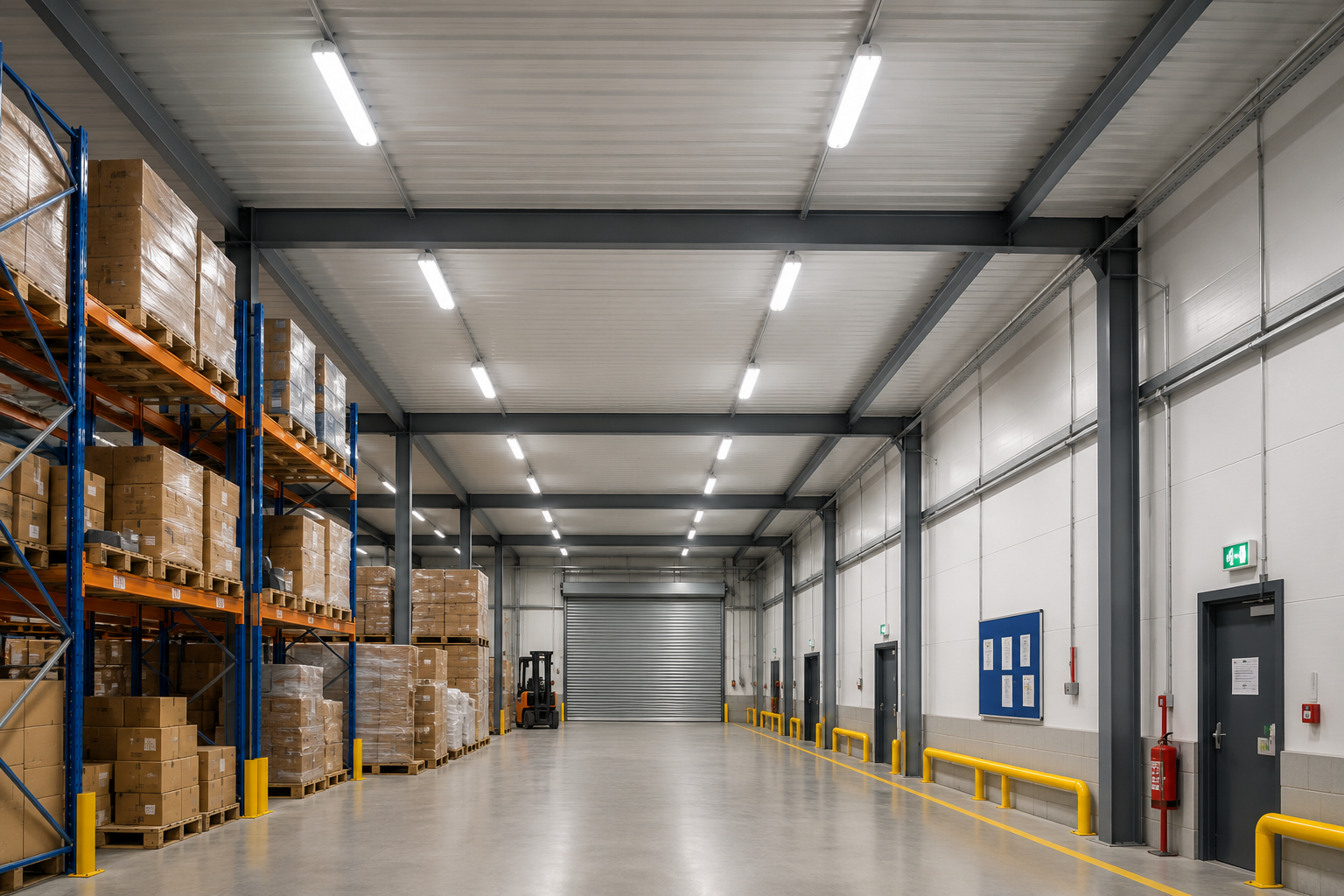

The FlexiSeries Forge is a high-performance, tri-proof LED luminaire engineered for demanding environments where durability, efficiency, and reliability are essential. Designed as a direct replacement for fluorescent NCF battens, it’s ideal for use in warehouses, factories, car parks, and both indoor and outdoor commercial spaces.

Built with an impact-resistant, IP65-rated polycarbonate housing and IK08 protection, the Forge delivers powerful illumination even in challenging conditions. With luminous efficacy up to 130 lm/W and multiple output options, it offers long-term energy savings and low maintenance, backed by a robust 5-year warranty.

  • Industrial-grade Protection: IP65 and IK08-rated for resistance to dust, water, and mechanical impact

  • High Efficiency: Up to 130 lm/W with SMD2835 LED chips

  • Flexible Configuration: Available in single CCT or tri-color; ON/OFF, 1-10V, DALI, or Microwave Sensor dimming options

  • Maintenance-Friendly: Driver mounting tray and double-sided wiring for quick installation and servicing

  • Safe and Sustainable: Flicker-free, mercury-free, and UV-free design

  • Longevity: Rated lifetime of L80/B10 @ 50,000 hours

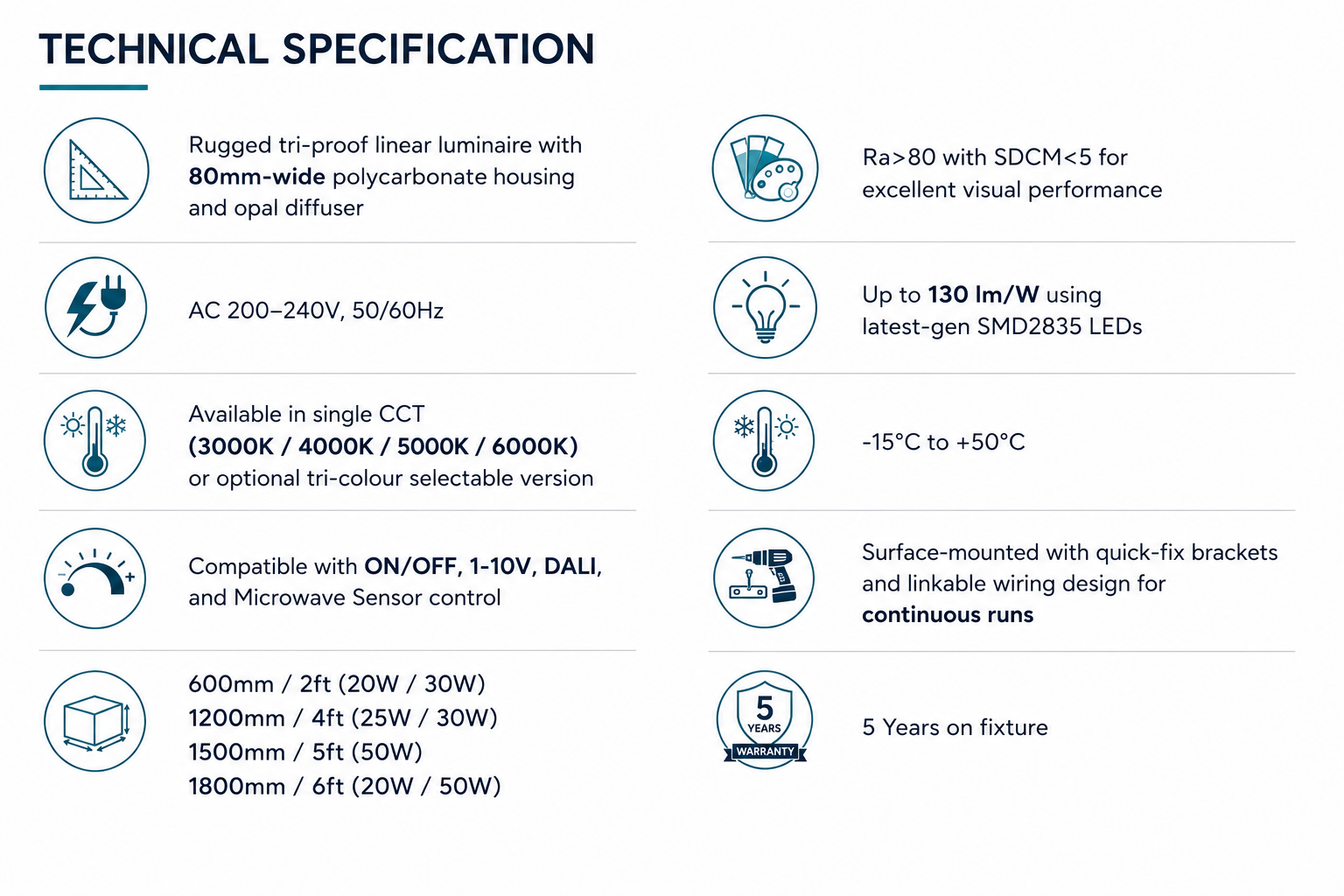

  • Design: Rugged tri-proof linear luminaire with 80mm-wide polycarbonate housing and opal diffuser

    Ingress & Impact Protection: IP65 / IK08 — built for industrial and outdoor-grade conditions

    Input Voltage: AC 200–240V, 50/60Hz

    Colour Temperature: Available in single CCT (3000K / 4000K / 5000K / 6000K) or optional tri-colour selectable version

    Dimming: Compatible with ON/OFF, 1-10V, DALI, and Microwave Sensor control

    Colour Rendering: Ra>80 with SDCM<5 for excellent visual performance

    Luminous Efficacy: Up to 130 lm/W using latest-gen SMD2835 LEDs

    Beam Angle: 120° wide beam for large-area coverage

    Dimensions (Standard Sizes):

    • 600mm / 2ft (20W / 30W)

    • 1200mm / 4ft (25W / 30W)

    • 1500mm / 5ft (50W)

    • 1800mm / 6ft (20W / 50W)

    Installation: Surface-mounted with quick-fix brackets and linkable wiring design for continuous runs

    Operating Temp: -15°C to +50°C

    Protection Rating: IP65 / IK08 — ideal for harsh, wet, or dusty environments

    Warranty: 5 years on fixture
